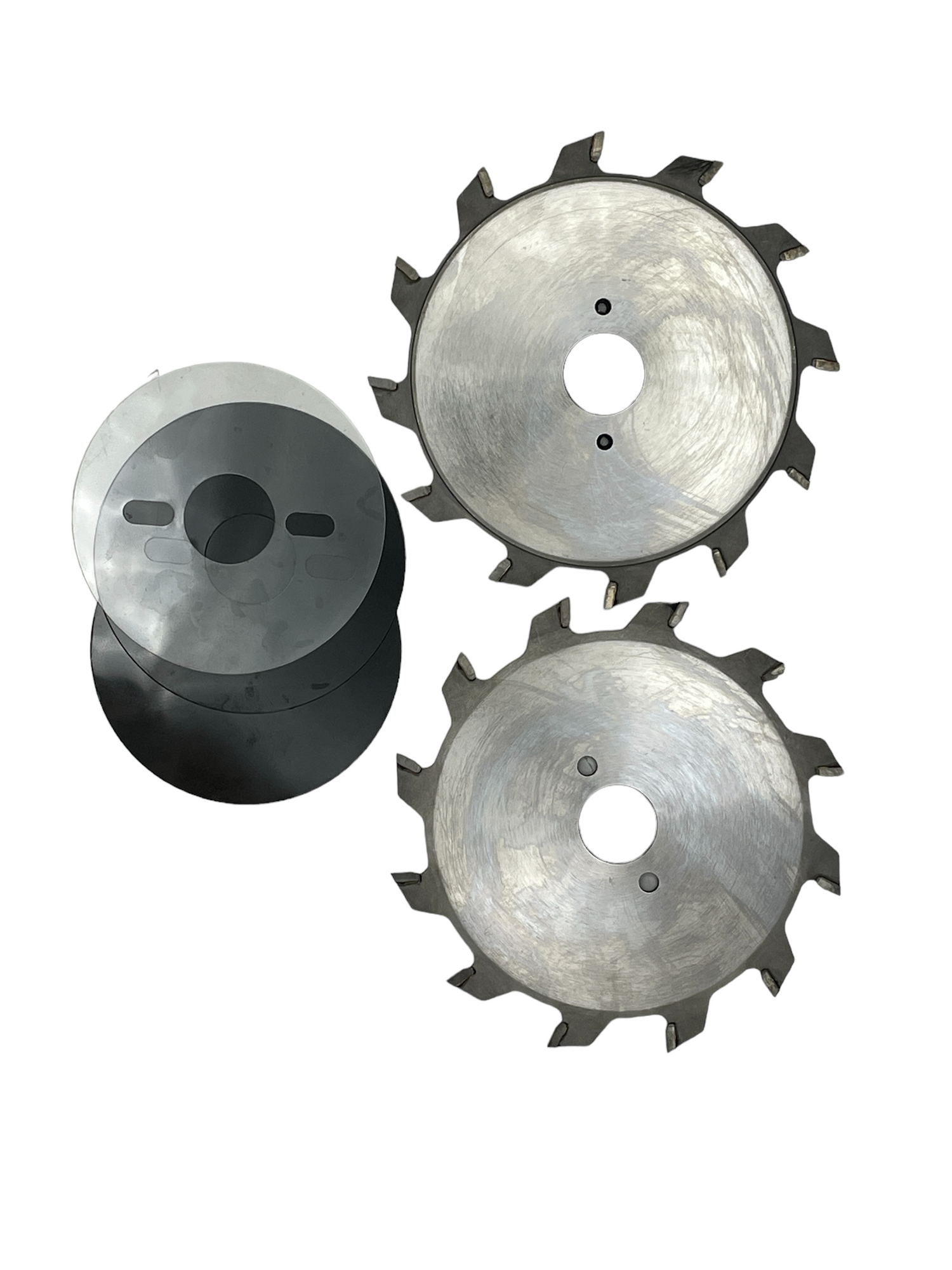

Split Scoring Saw Blades
For scoring of laminated board materials in conjunction with panel sizing saw blades on table saws. Use metal or plastic shims to set the correct scoring width to be slightly wider (.005") than main blade (panel saw) kerf width.

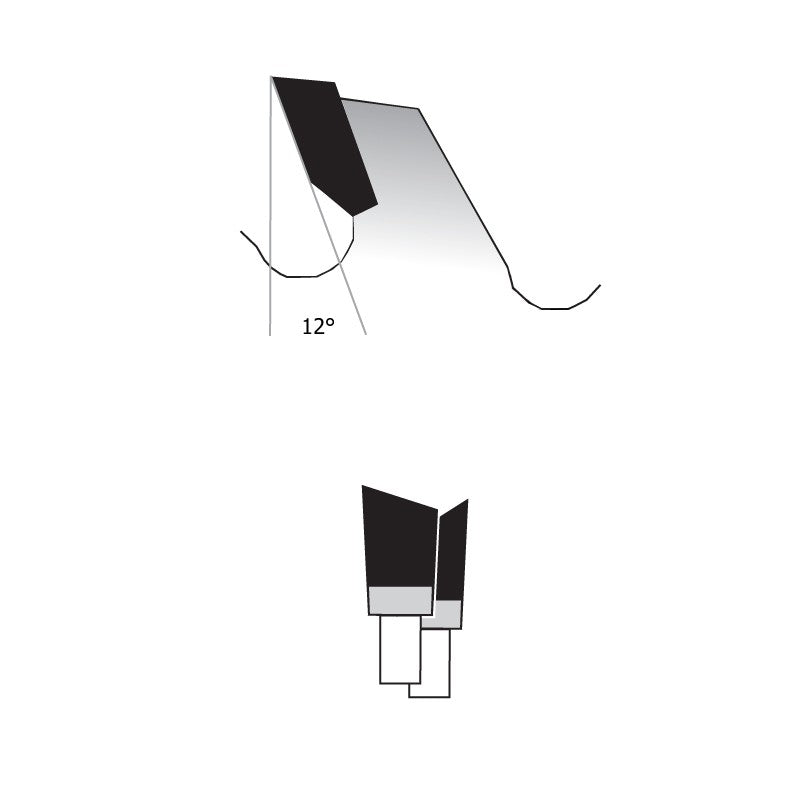

Ref. No | Dia | Kerf Range | Plate | Bore | Teeth | Hook |
---|---|---|---|---|---|---|
RSS12012-20 |
120mm | 2.8-3.6mm | 2.0mm | 20mm | 2×12 | 12° |
RSS12012-22 | 120mm | 2.8-3.6mm | 2.0mm | 22mm | 2×12 | 12° |
RSS12012-34 | 120mm | 2.8-3.6mm | 2.0mm | 3/4″ | 2×12 | 12° |
RSS12012-50 | 120mm | 2.8-3.8mm | 2.0mm | 50mm | 2×12 | 12° |
RSS12512-22 | 125mm | 2.8-3.6mm | 2.0mm | 22mm | 2×12 | 12° |
